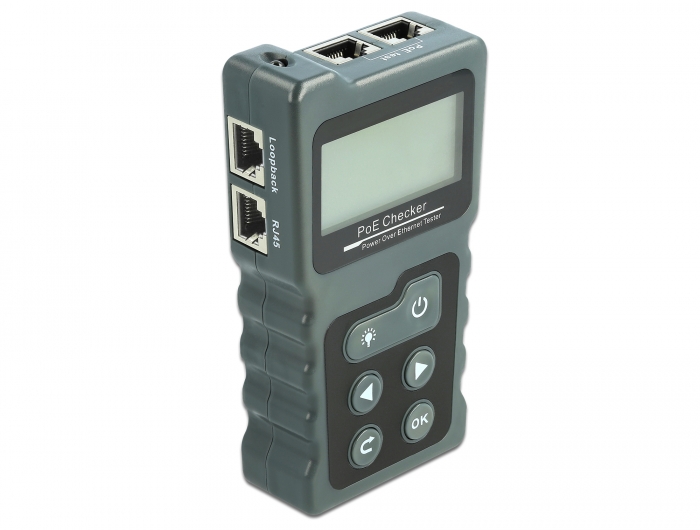

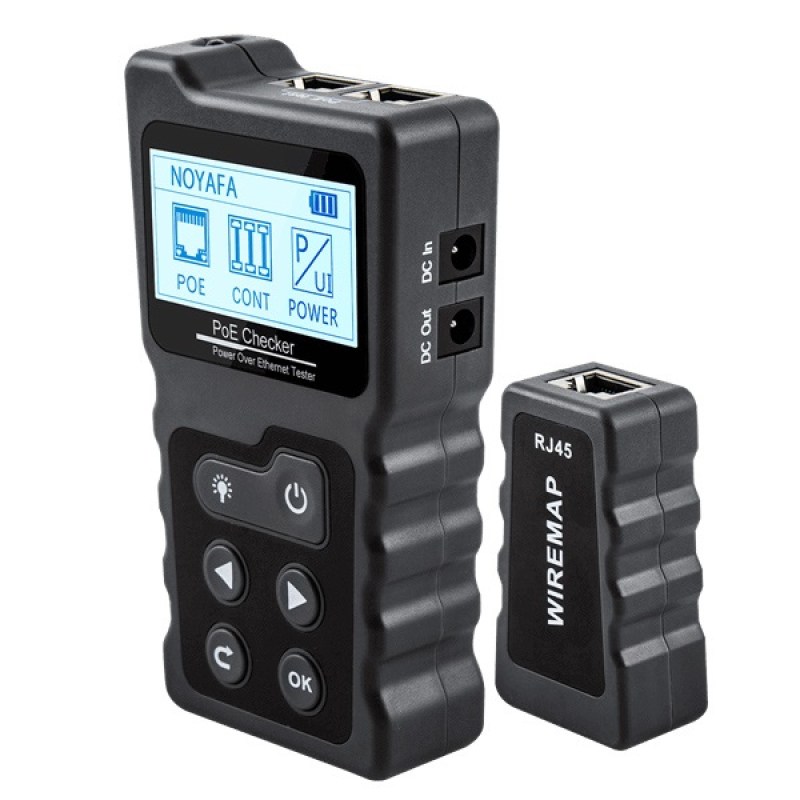

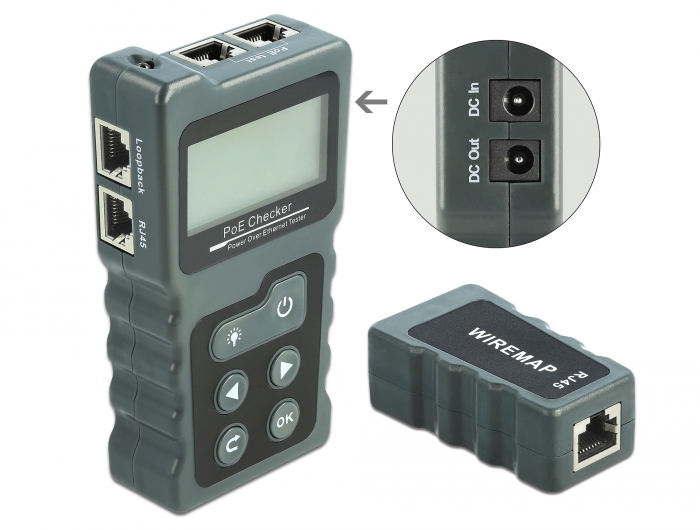

1298851 LCD Cable Tester RJ45 / PoE / DC
Περιγραφή

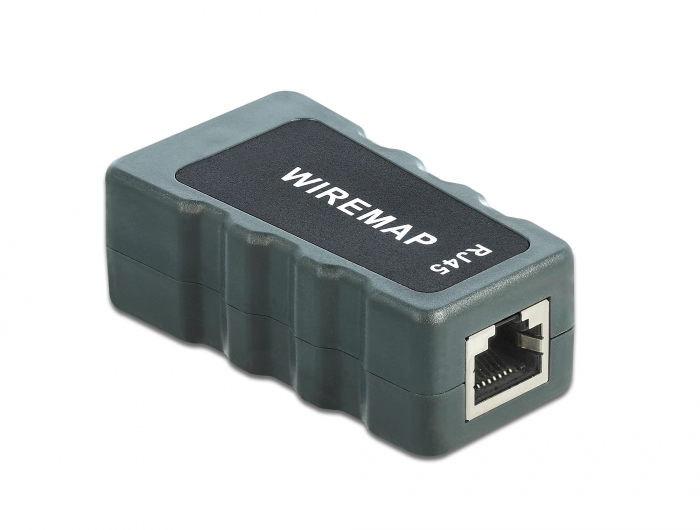

With this cable tester the wiremap of network cables can be tested quickly and easily. The results are shown clearly on the illuminated LCD display. The remote unit can be used to test already installed cables.
The PoE standard and the used wire pairs of a PoE voltage source can be determined. With a connected load, the actual voltage, polarity, current and power are displayed in real time.
SKU προϊόντος: 1298851
Χαρακτηριστικά

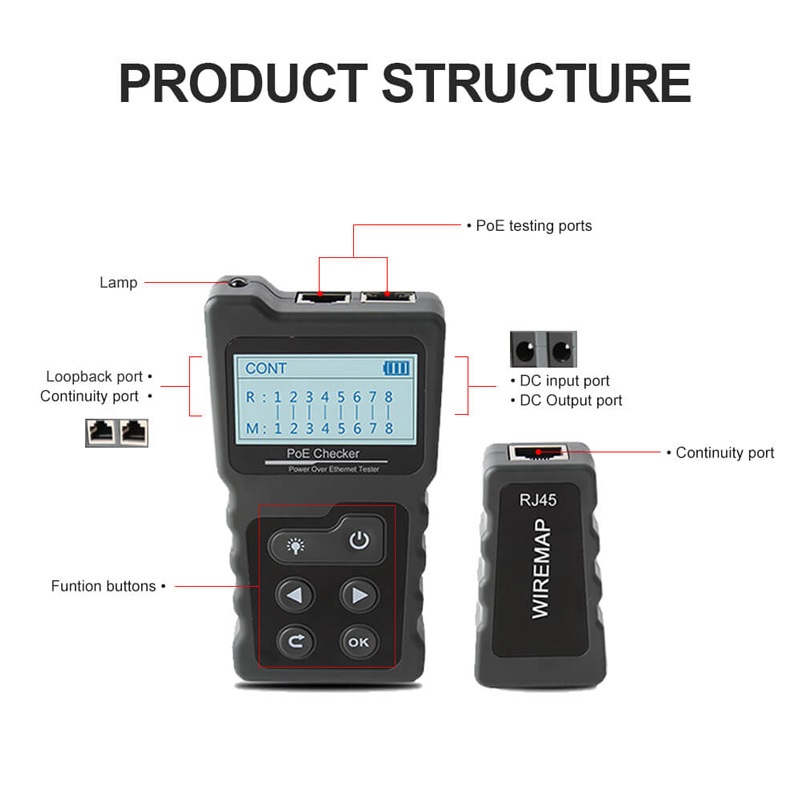

- Matrix LCD display with background lighting
- 6 operating buttons
- Display of open, short or crossed connections
- Display of used PoE standards 802.3af or 802.3at br />
- Display of used PoE pairs (12/36) or (45/78)
- Display of voltage, polarity, amperage and power for PoE or DC
- Test range voltage: DC 0 - 60 V
- Test range current: 0 - 3 A
- Test range power: 0 - 180 W
- Auto power-off mode
- Flashlight function
- Colour: dark grey
- Dimensions (LxWxH): ca. 12.5 x 6.9 x 2.8 cm
PDF FILE: 1298851.pdf
