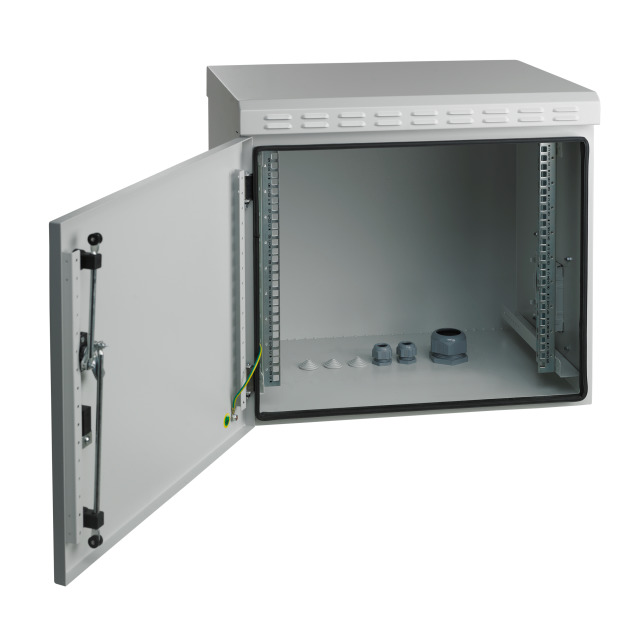

207061 19" Wall Rack IP55 Steel Door 9U WHD 600x500x450mm

Περιγραφή

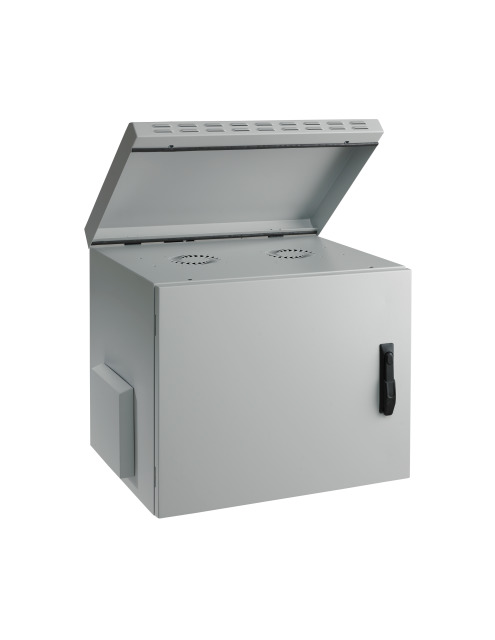

• Steel sheet housing with welded corpus, completely pre-assembled. Right- and left-sided metal covered air inlets for passive ventilation. Side walls not detachable. Roof hinged, inner roof prepared for mounting of Plug&Play fan unit.

Χαρακτηριστικά
• For depth 450 mm inside 2 x 19" profile rails front-sided, galvanised, with numberung of rack units
• For width 600 mm inside 4 x 19" profile rails (2 front, 2 rear), galvanised, with numberung of rack units
• Front door steel sheet with reinforcement and 3-point bar locking, lockable, with profile half-cylinder acc. to DIN 18252 / EN1303
• For height 630 mm with 12 number of height units
• Max. load 100 kg
• Bottom with PG glands 1 x PG48, 2 x PG21 and 3 x Ø 20 mm PVC blind grommets
• Protection degree IP55
• Paint finish RAL7035, light grey
• Plinth for use as standing cabinet available as option
• Cabinet parts inside completely earthed
