POI-3000 Gigabit High Power PoE Injektor (30W) LevelOne

Περιγραφή
• The LevelOne POI-3000 is a single port, high power PoE PSE solution for remote PoE PD devices. Generating up to 30W , POI-3000 supplies remote power for new applications such as wireless access points, pan-tilt-zoom (PTZ) IP cameras and videophones. It complies with IEEE 802.3at PoE standard and is backward to IEEE802.3af. It can work with 10/100Base-T networking devices and emerging 1000Base-T devices such as Wi-MAX and wireless IEEE 802.11n access points. For all the function featured in POI-3000, people can get the benefit of flexible network installation at lower cost, less downtime. It also provides a high-bandwidth pipe to the network.

Standards & Protocols:
• IEEE 802.3 10Base-T, Ethernet
• IEEE 802.3u 100Base-TX, Fast Ethernet
• IEEE 802.3ab 1000Base-T, Gigabit Ethernet
• IEEE 802.3af/at Power over Ethernet (PoE) compliant

Port:

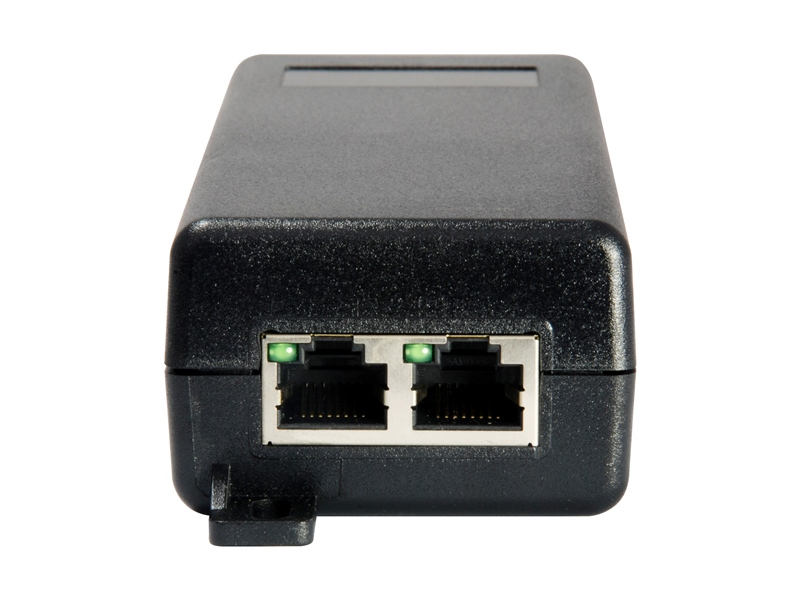

• 1 x 10/100/1000Base-T RJ-45 Input Port
• 1 x 10/100/1000Base-T RJ-45 PoE Output Port

Indicator:
• Power, PoE

Pin Assignment and Polarity:
• 1/2 (+), 3/6 (-)

Power Input:
• PoE Power Output: DC 56V / 30W
• Unit Output Voltage: DC 56V / 0.54A
• Power Requirement: 100-240V AC, 50/60Hz, 0.8A
• Power Consumption: 30W (Max.)

Operating Temperature (°C):
• Operating: 20°C ~ 60°C
• Storage: 0°C ~ 70°C

Operating Humidity (Non-condensing):
• Operating: 5 ~ 95%
• Storage: 5 ~ 95%

Mount:
• Wall mount

Approval and Compliance:
• EMI/EMS: EN55024 Class B, FCC, CE, Industry Canada ICES-003 Class B
• Safety: EN60950, EN62368, UL
• Environmental Test:IEC61000 ESD Level 4 (Con 8KV /Air 15KV)
Others:EN55022 Class B, Hi-pot 3KVac, Insulation Resistance 50MΩ)
6KV PoE Surge, EN55032, AS/NZS CISPR32

Features:
• PoE: IEEE 802.3af/at compliant

Dimensions:
• (W x D x H mm): 173.5 x 55 x 35.5mm

Package Contents:
• POI-3000
• Quick Installation Guide
• Power Cord
