908052 Fiber Optic Distribution box for 8 LC Duplex, 3 IN, 8 OUT
Περιγραφή

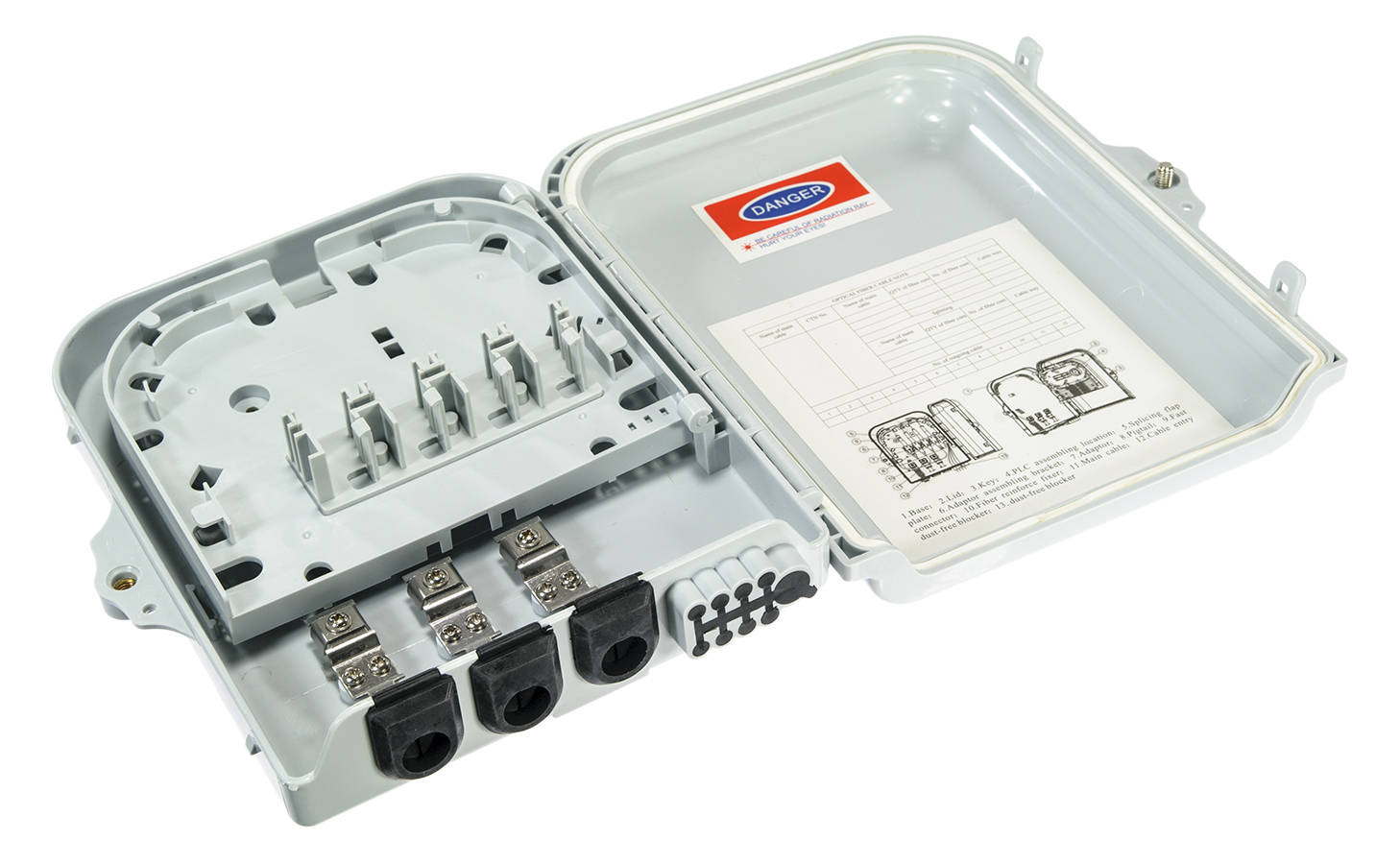

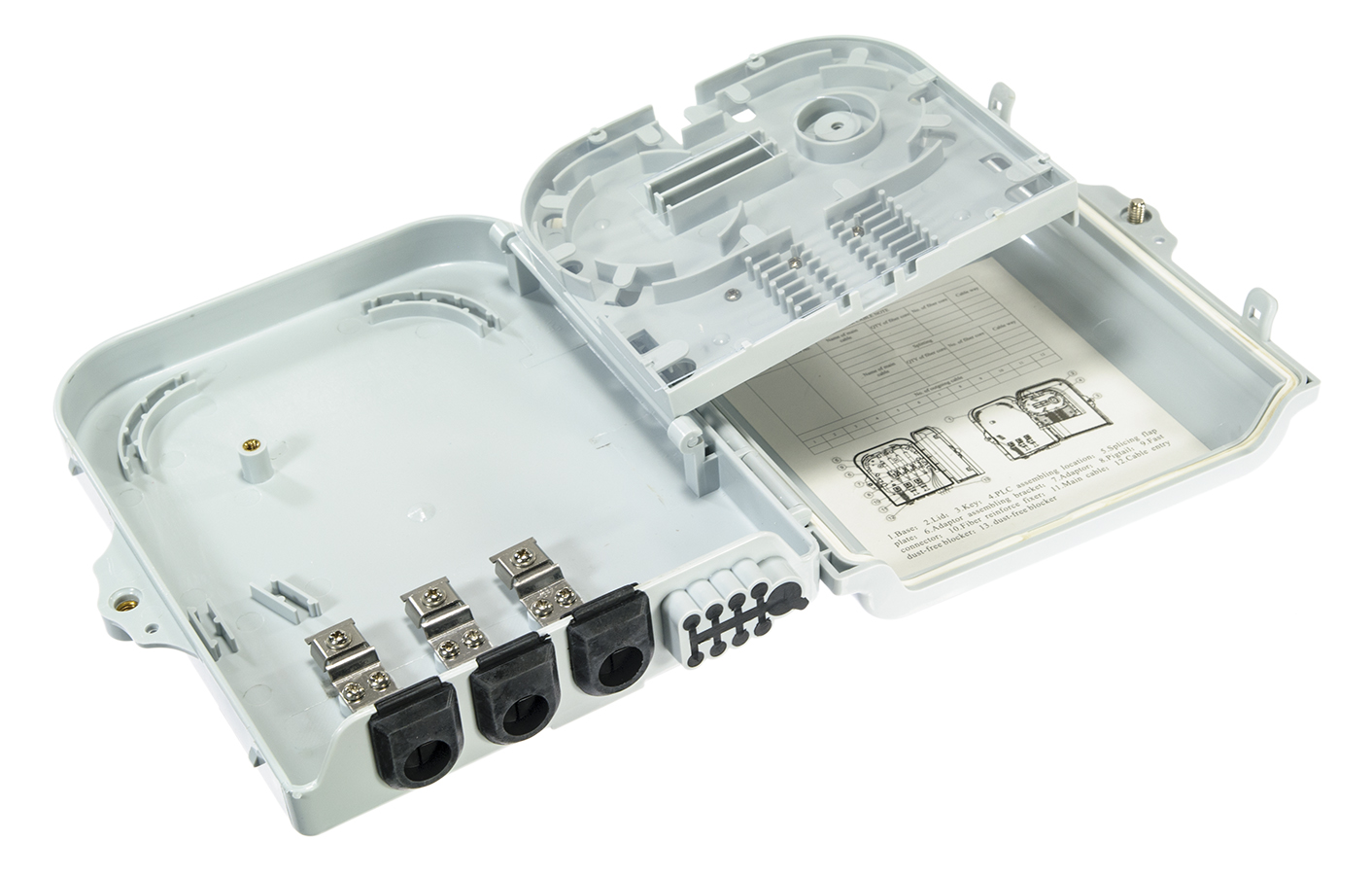

This fiber access termination box is able to hold up to 8 LC duplex or 8 SC simplex couplers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
SKU προϊόντος: 0908052
Χαρακτηριστικά
- Water-proof design with IP-55 Protection level
- Integrated with splice cassette and cable management rods
- Manage fibers in a reasonable fiber radius condition
- Easy to maintain and extend the capacity
- The box will also fit a PLC splitter
- Suitable for the fusion splice or mechanical splice

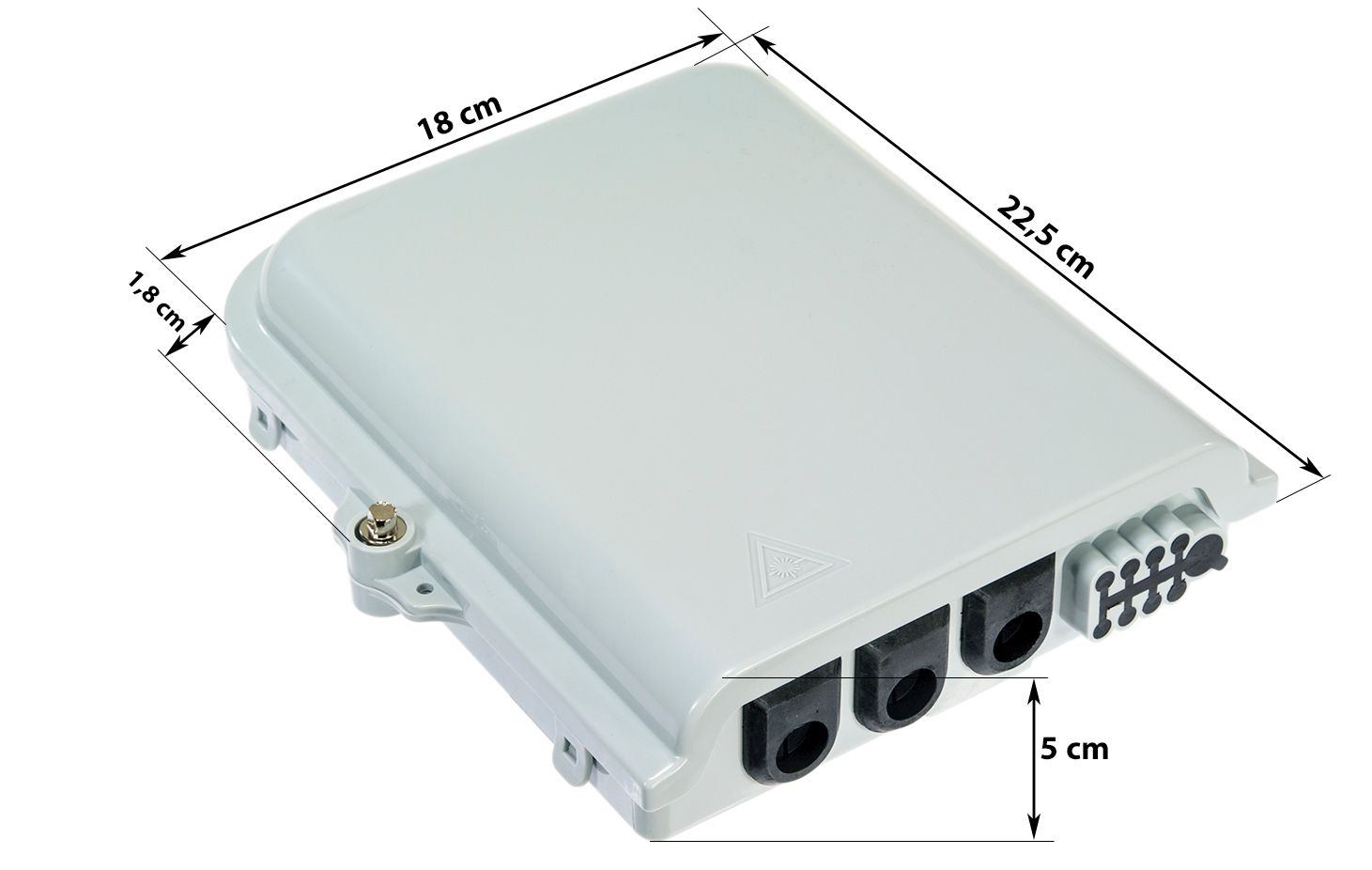

- Height: 22.5 cm
- Width: 18 cm (+ 1.8 cm lock)
- Depth: 5 cm (+ 0.7 cm handle)
PDF FILE: 908052.pdf
