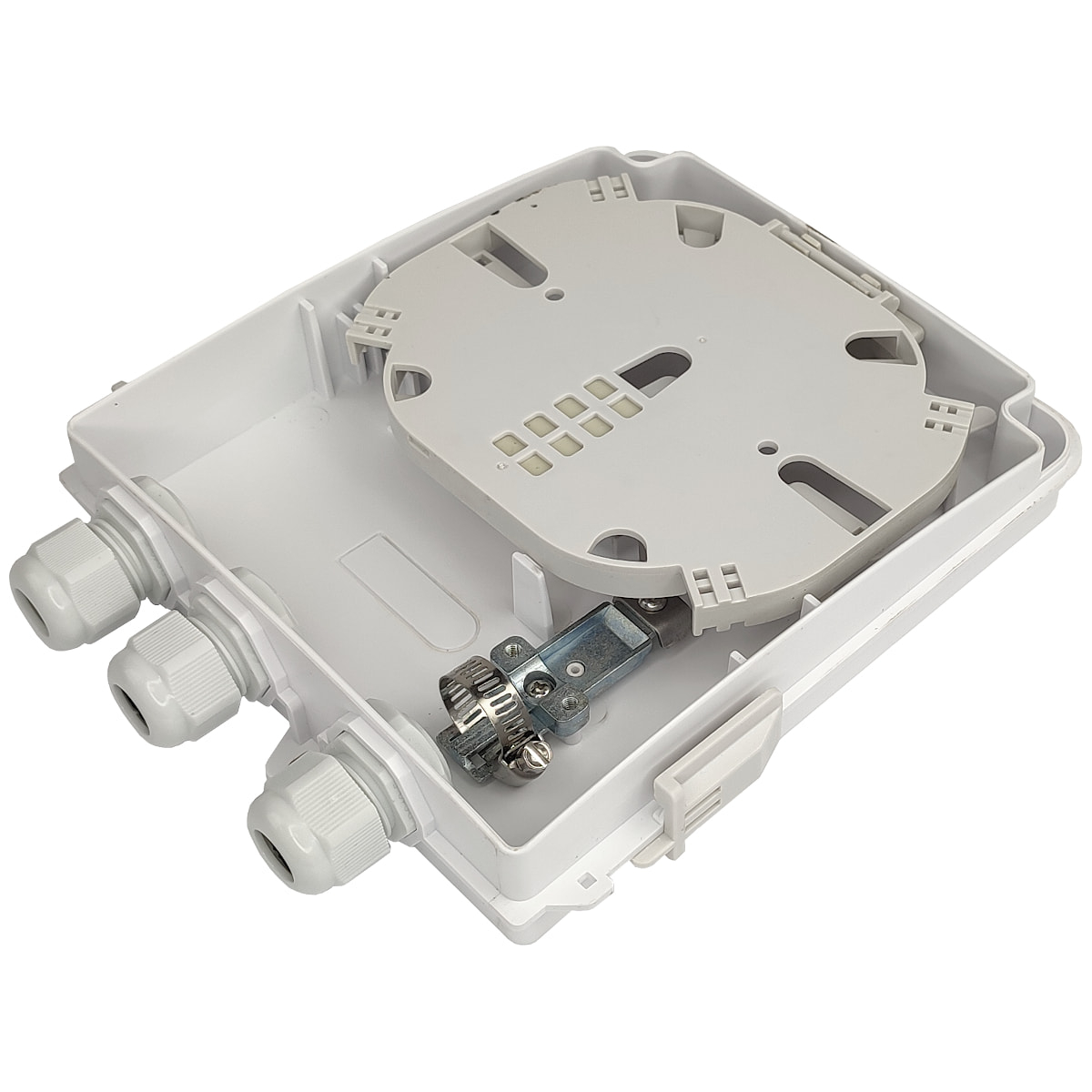

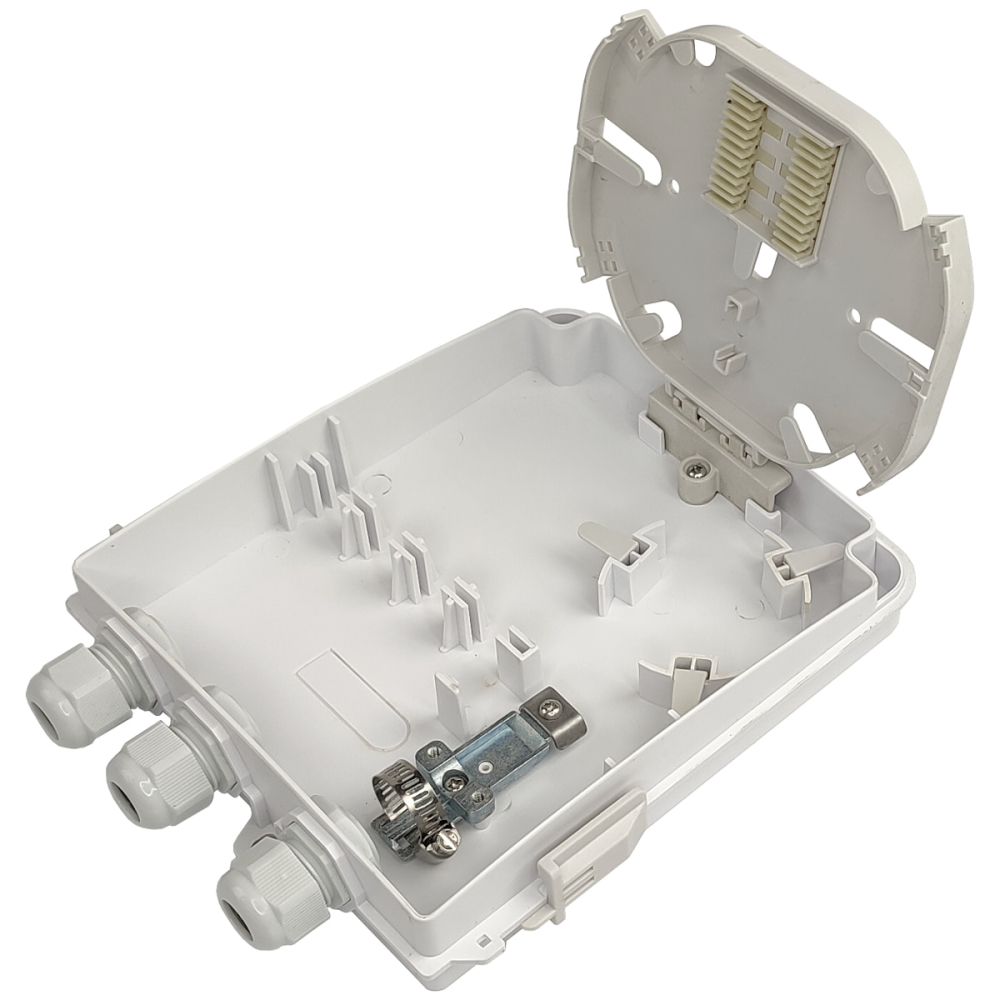

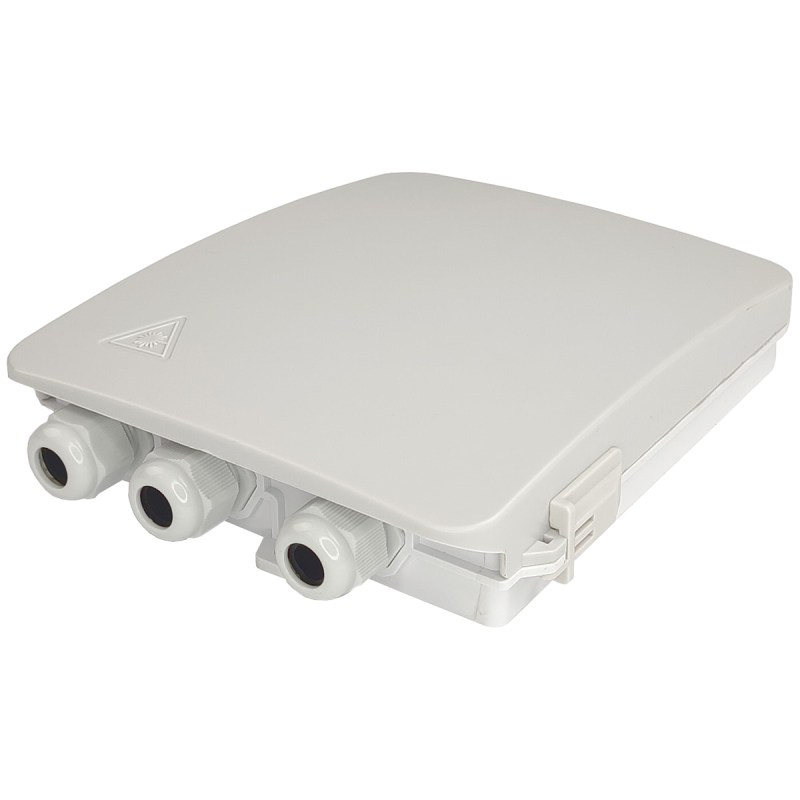

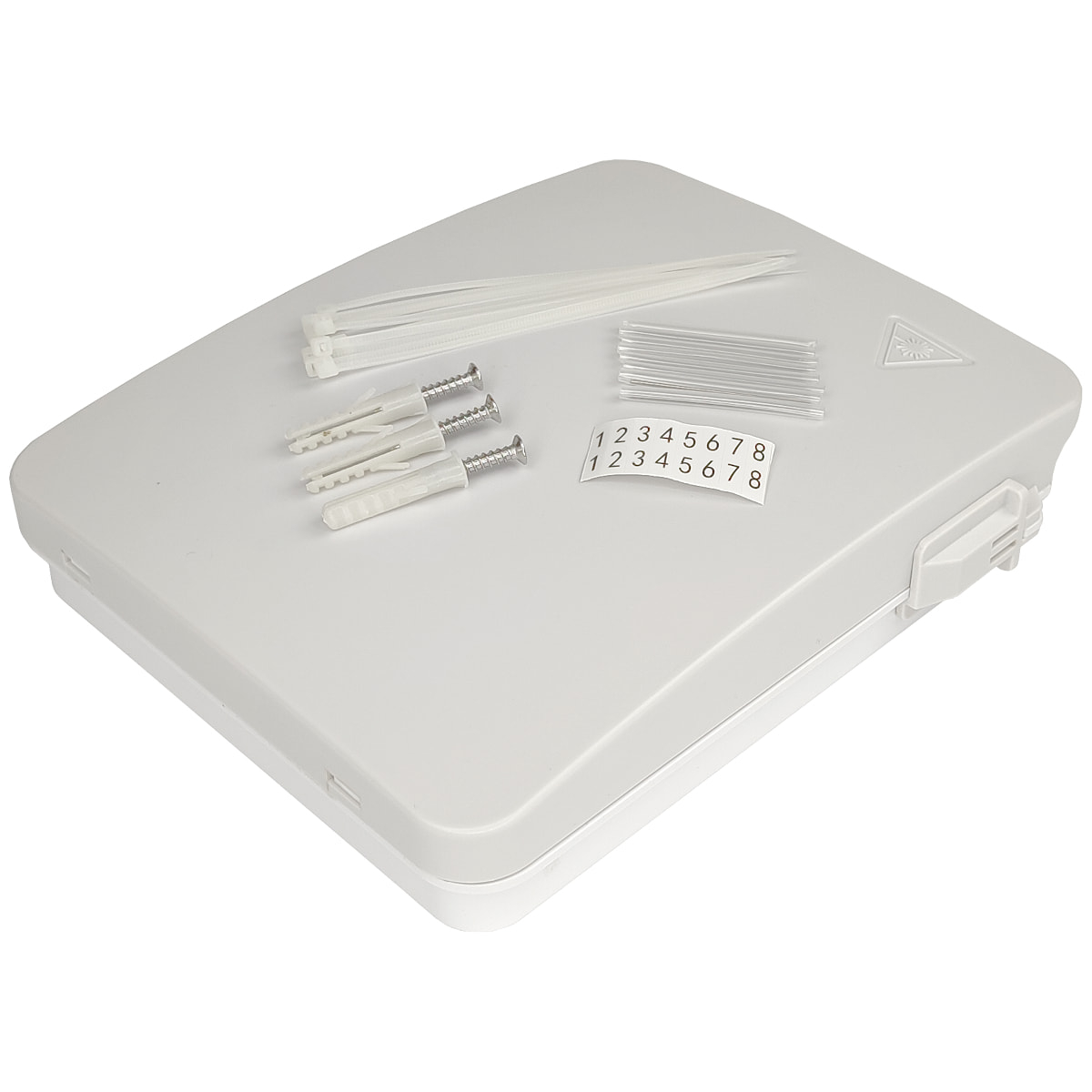

908060 Fiber optic Terminal Box 1in/2out 8 LC/DX or SC/SX P65 Dataconnect
Περιγραφή
The 908060 is a termination box for FTTx installations, with 1 cable input, 2 cable outputs and 8 ports for SC/SX or LC/DX adapters. Reliable choice with compact and robust features, for connecting and managing FTTx fibers, indoors and outdoors.
SKU προϊόντος: 0908060
Χαρακτηριστικά
- cable input/output: 1/2 x Ø10mm (PG-type)
- Slots for 8 SC/SX or LC/DX adapter couplers
- Holder for 12 splices incl. cassette
- Protection class: IP65
- Environmental temperature: -40 °C ~ 60 °C
- Housing material: ABS
- Suitable for indoor and outdoor use
- Dimensions (HxWxD): 320mm x 175mm x 45mm
DATASHEET: 908060.pdf
