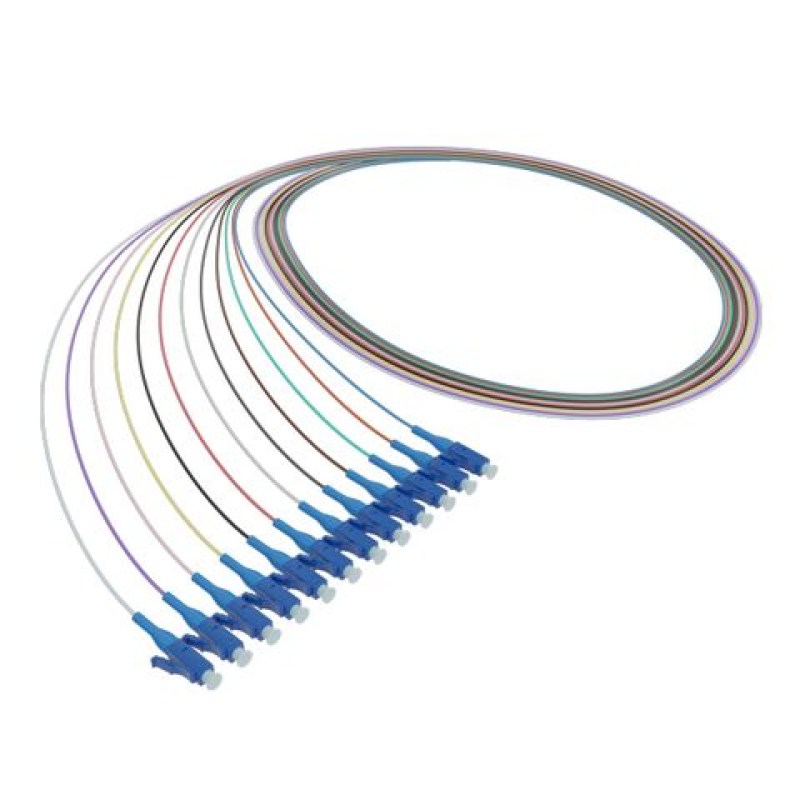

257103 LC/UPC Pigtail Set 12 x OS2 9/125 LSZH Colored 2m Blue connector
Περιγραφή
Fiber optic pigtail is a short fiber optic cable that has an optical connector at one end and a length of exposed fiber at the other. The connector can be terminated with various types of connectors such as SC, LC, ST or FC. Pigtails are used to terminate fiber optic cables for devices and equipment. The exposed fiber at the other end of the cable is then spliced to the fiber in the main cable using melt-by-melt techniques or a mechanical splice. This allows for a fast and easy connection between the device and the fiber optic network. Fiber optic braids come in various lengths and colors to make identification and organization easier.
SKU προϊόντος: 0257103
Χαρακτηριστικά
- Pigtail Set 12 x 0.9mm with LC-Connector blue, 2m
- OS2 G652D 9/125μ singlemode
- Core type: Semi tight
- Colored buffer, according to IEC 304 in the colors: white, violet, turquoise, black, red, pink, orange, gray, green, yellow, brown, blue
- Material outer sheath: LSZH
- Cable Conform to Standard: IEC60793-2
- Connector Conform to Standard: IEC61754-20
- Operating Temperature: -10 – 60 °C
- Low insertion loss and high return loss
- Each cable includes a measure protocol
PDF FILE: 257103.pdf
