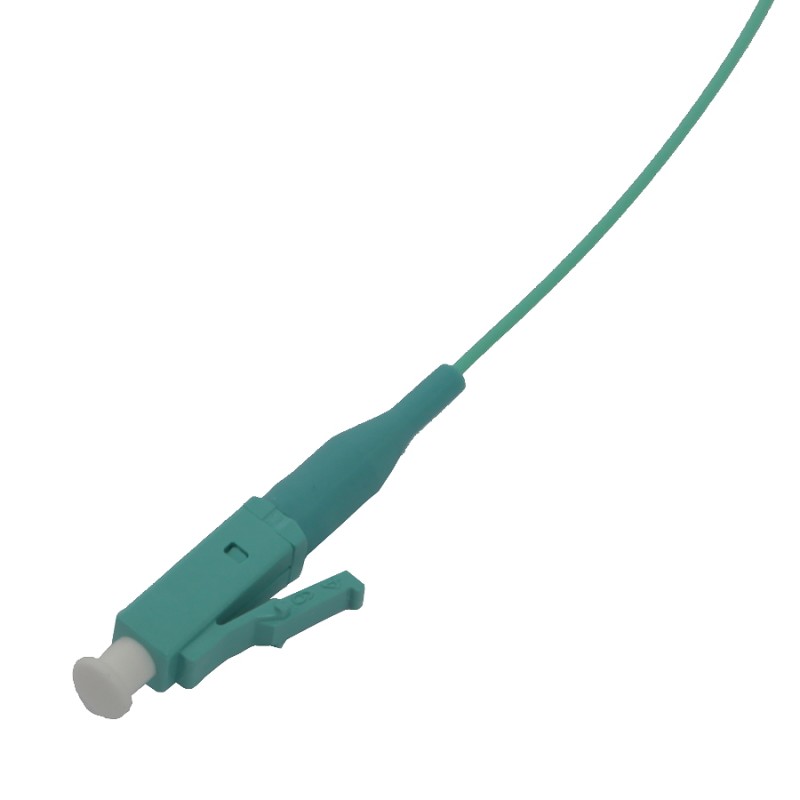

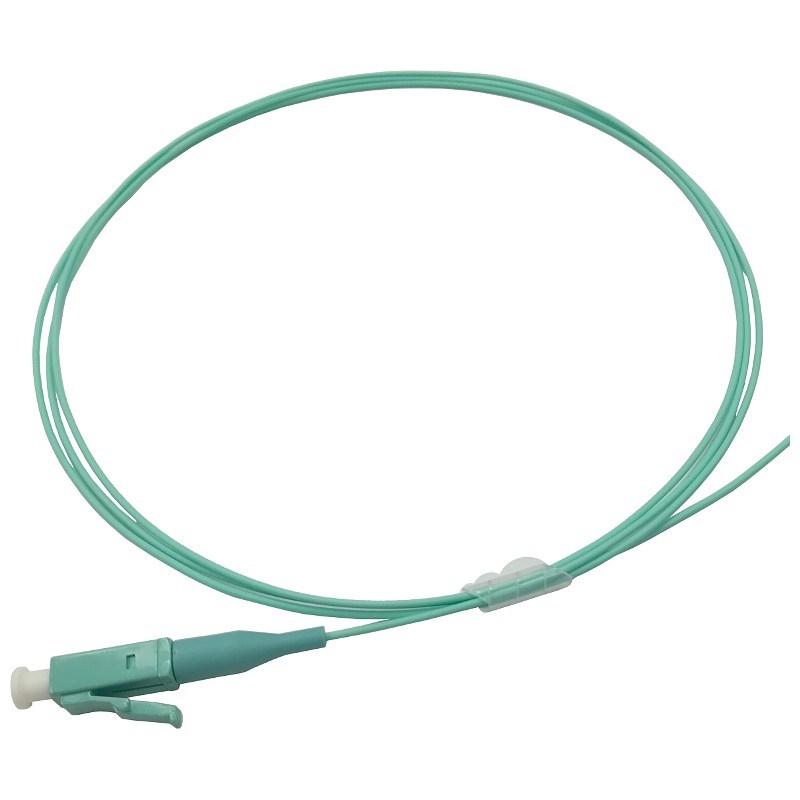

257120 LC/UPC 50/125 OM3 Pigtail LSZH 2m Aqua
Περιγραφή
Fiber optic pigtail is a short fiber optic cable that has an optical connector at one end and a length of exposed fiber at the other. The connector can be terminated with various types of connectors such as SC, LC, ST or FC. Pigtails are used to terminate fiber optic cables for devices and equipment. The exposed fiber at the other end of the cable is then spliced to the fiber in the main cable using melt-by-melt techniques or a mechanical splice. This allows for a fast and easy connection between the device and the fiber optic network. Fiber optic braids come in various lengths and colors to make identification and organization easier.
SKU προϊόντος: 0257120
Χαρακτηριστικά
- Pigtail 0.9mm with LC-Connector aqua, 2m
- OM3 50/125μ multimode
- Core type: Semi tight
- Material outer sheath: LSZH
- Cable Conform to Standard: IEC60793-2
- Connector Conform to Standard: IEC61754-20
- Operating Temperature: -10 – 60 °C
- Low insertion loss and high return loss
- Each cable includes a measure protocol
PDF FILE: 257120.pdf
