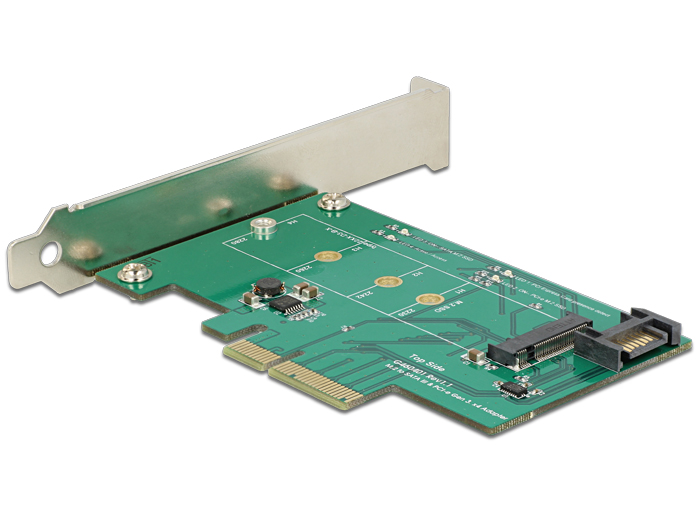

89381 PCI Express Card > 1 x internal NVMe M.2 NGFF Delock

 • Connector: internal:
  1 x 67 pin M.2 NGFF key M slot
  1 x SATA 6 Gb/s 7 pin female
  1 x PCI Express x4
• Interface: PCIe / SATA
• Supports M.2 NGFF modules in format 2280, 2260, 2242 and 2230 with key M or key B+M based on PCIe or SATA
• Maximum height of the components on the module: 1.35 mm application of double-sided assembled modules supported
• Supports M.2 NGFF PCI Express 2-Lane and 4-Lane modules

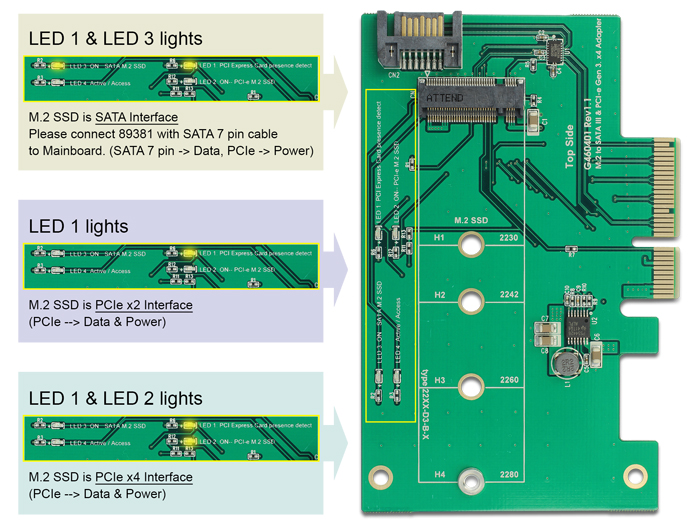

• 4 LEDs for indication of SATA or PCI Express module and for activity status
• Bootable (with SATA module)
• Supports NVM Express (NVMe)
• OS independent, no driver installation necessary
